ردیوسینگ رکسروت ZDR6

ردیوسینگ رکسروت ZDR

ردیوسینگ ZDR6 بوش رکسروت Bosch Rexroth

بررسی فنی و عملکرد ردیوسینگ رکسروت ZDR6

تامین و فروش شیرهای کنترل فشار ساده و پیلوت دار ساخت شرکت Rexroth آلمان

شیرهای ردیوسینگ رکسروت فشار بالایی را در ورودی دریافت میکنند و فشار کمتر و تنظیم شده ای را در خروجی تحویل میدهند .  این ولو هیدرولیکی بدون سوپاپ میباشد .

ردیوسینگ ولو در مسیر و خطوط هیدرولیک بین پمپ و جک ( سیلندر ) هیدرولیک و یا هیدروموتور  قرار میگیرد .

در حالت غیرفعال داری مسیر باز هستند و با افزایش فشار مسیر را میبندند .

برای دریافت مشاوره و نحوه نصب و همچنین آگاهی از قیمت و خرید ردیوسینگ ولوهای Rexroth رکسروت با کارشناسان فنی و مالی ما در فروشگاه هیدرولیک هیدشاپ تماس بگیرید .

 Symbols/Circuit diagrams : ردیوسینگ رکسروت ZDR6

Version “P…YM”

Version P YM

Version “A…YM”

Version A YM

Version “B…YM”

Version B YM

Version “A…Y”

Version A Y

Features :  ردیوسینگ رکسروت ZDR6

▶▶ Sandwich plate valve

▶▶ Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole)

▶▶ 4 pressure ratings

▶▶ 4 adjustment types, optionally:

–– Rotary knob

–– Bushing with hexagon and protective cap

–– Lockable rotary knob with scale

–– Rotary knob with scale

▶▶ Pressure reduction in channel A, B or channel P

▶▶ Check valve, optional (version “A” only)

▶▶ Corrosion-protected design

Function, section  : ردیوسینگ رکسروت ZDR6

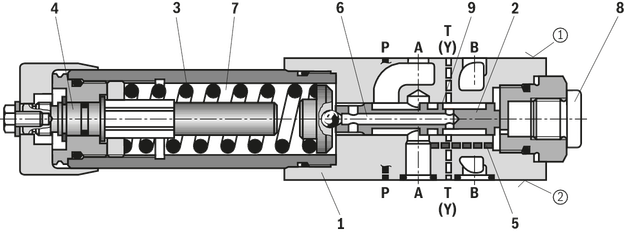

ساختار ردیوسینگ رکسروت ZDR6

The valve type ZDR is a direct operated pressure reducing valve in sandwich plate design with pressure limitation of the secondary circuit.

It is used to reduce the system pressure.
The pressure reducing valve basically comprises housing (1), control spool (2), compression spring (3), adjustment type (4) and an optional check valve.

The secondary pressure is set via the adjustment type (4). Version “A” The valve is open in initial position. Hydraulic fluid can flow from channel A① to channel A② without restrictions.

The pressure in channel A② is simultaneously applied via the control line (5) at the piston area opposite the compression spring (3). If the pressure in channel A② exceeds the value set at the compression spring (3), the control spool (2) is pushed against the compression spring (3) to control position and keeps the set pressure in channel A② at a constant level. Control signal and pilot oil are supplied internally via the control line (5) from channel A②.

If the pressure in channel A② increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).

In this way, channel A② is connected to the tank via the control edge (9) at the control spool (2) and the housing (1). So much hydraulic fluid is discharged into the tank that the pressure does not increase any further. The leakage oil drain from the spring chamber (7) is always effected externally via the bore (6) and channel T (Y). A pressure gauge connection (8) allows for the control of the secondary pressure at the valve. A check valve can be used for free flow back from channel A② to A① with version “A”. Versions “P” and “B” With version “P”, the pressure reduction is effected in channel P①. Control signal and pilot oil are supplied internally from channel P①. With version “B”, the pressure is reduced in channel P①; but the pilot oil is extracted from channel B.
