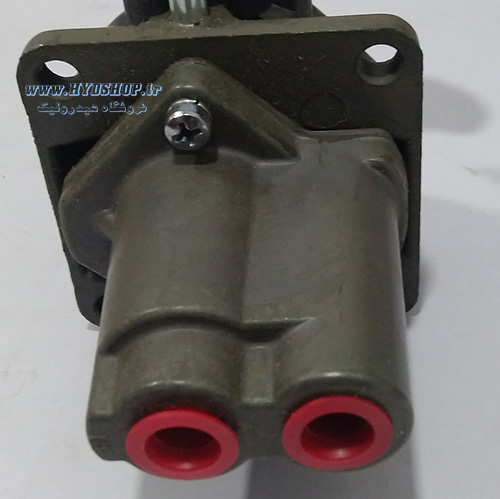

شیر رکسروت 2HA

شیر پنوماتیک کنترل جهت دستی رکسروت Rexroth  آلمان

فروش و تامین شیر دستی پنوماتیک رکسروت 2 راهه و 3 راهه رکسروت Rexroth آلمان

انواع مدل های :

2-HA-2    |     2-HA-2Y    | 2-HA-2YL   | 2-HA-2L   |    2-HA-2Z   |   2-HA-2LR

سایز پورت ورودی و خروجی 1/4 اینچ NPT

برای بررسی کد و اطلاع از موجود بودن شیر دستی مورد نظر با فروشگاه هیدرولیک هیدشاپ تماس بگیرید و پس از مشاوره با کارشناسان فنی اقدام به خرید شیر پنوماتیک 2HA رکسروت نمایید

اطلاعات تکمیلی شیر رکسروت 2HA

2-HA-2Y PILOTAIR VALVES FOUR-WAY, TWO POSITION HANDLE W/DETENTS

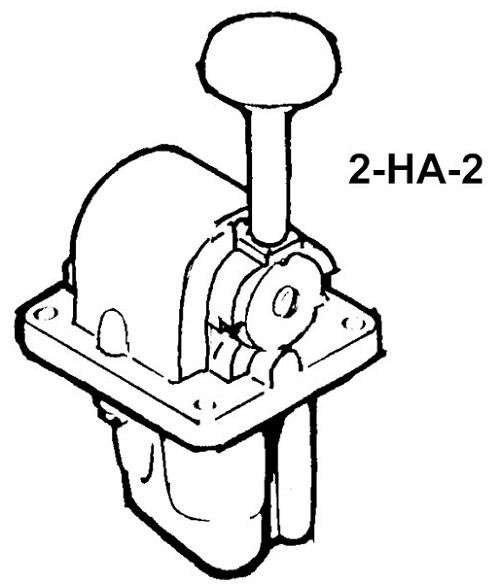

The 2-HA-2 PILOTAIR Valves are panel-mounted, 2, 3 and 5 position valves with one inlet and two outlet ports. Available with detents in each handle position, a latching handle that requires manual release to insure against unintentional operation, (Also available with handle 2″ longer) or spring return to center position. All ports are 1/4″ NPT.

The Panel-Mounted “A” PILOTAIR Valve is a poppet-type pneumatic directional control valve consisting of a cam housing portion and a valve portion containing from one to four 3-way valve units.

The “A” PILOTAIR Valves’ streamlined compact design makes them especially suited for deluxe panel mountings such as in consoles or control panels. They can be mounted in either horizontal or vertical panels. The internal parts are enclosed to make them ideal for outdoors installations or other unfavorable working conditions.

Operating Versatility

Versatility has been designed into the operating cams. By reversing, rotating and rearranging these all-purpose cams, all the listed combinations can be made with a minimum of parts. Single unit valves for 3-way operation may be normally open or normally closed. The two unit valves have two, three, or five positions of operation as do the three and four unit valves. (See operation.) Detents can be had for two, three or five positions, or handle may be spring returned to center for three position operation.

Operation

In release position, as shown, the valve disc seats on the inlet valve seat and seals the passage from the inlet to the outlet port. The outlet port is vented to atmosphere through the center of the plunger.

As the plunger is forced downward by the cam force it seats on the valve disc. This seals the passage between the outlet port and atmosphere.

Further downward travel of the plunger unseats the valve disc from the inlet valve seat and allows inlet air pressure to flow to the outlet port.

Features

Several new features have been designed into the Panel-Mounted “A” PILOTAIR Valve for added strength, easier maintenance and longer service life.

One-piece solid steel shaft for increased strength.

Bronze bearings in cam housing for longer wear.

Separate steel handle and hub for increased strength.

Tooth-type Nylatron plastic detents for longer wear and more positive detenting.

Internal centering spring assembly for longer wear and more positive handle centering.

Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.

More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.
