گیربکس بونفیلیولی سری 700C
گیربکس خورشیدی سری 700C ساخت بونفیلیولی ایتالیا Bonfiglioli
bonfiglioli بونفیلیولی
فروش و تامین انواع گیربکس خورشیدی بونفیلیولی سری 700C کوپل شده با الکتروموتور و هیدروموتور
بررسی و انتخاب مدلهای مختلف سری 700C گیربکس موبایلی ساخت شرکت بونفیلیولی ایتالیا
700C Series
Planetary winch gearboxes of the 700C series are composed of 18 finely spaced frame sizes.
The compact design allows the gearbox to be integrated into the winch drum.
The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears.
Electrically driven versions are available with both in-line and right-angle configurations. Torque ratings are organized by FEM class, in accordance with minimum approved class safety factors for gears.
جعبه دنده های وینچ سیاره ای سری 700C از 18 اندازه قاب با فاصله ریز تشکیل شده اند.
طراحی جمع و جور به گیربکس اجازه می دهد تا در درام وینچ ادغام شود.
ترمز ناامن می تواند در داخل جعبه دنده یکپارچه شود و یا در قسمت خارجی نصب شود ، با روغن کاری مشترک برای دنده ها.
نسخه های الکتریکی با دو پیکربندی خطی و زاویه راست در دسترس هستند. درجه بندی گشتاور توسط کلاس FEM مطابق با حداقل فاکتورهای ایمنی کلاس تایید شده برای چرخ دنده ها سازماندهی می شود.
دقت داشته باشید گیربکس خورشیدی سری 700c بونفیلیولی در مدل های مختلف برای کاربری های مختلف طراحی و ساخته میشود :
که به اختصار در مورد ویژگیهای هر یک توضیح خواهیم داد.

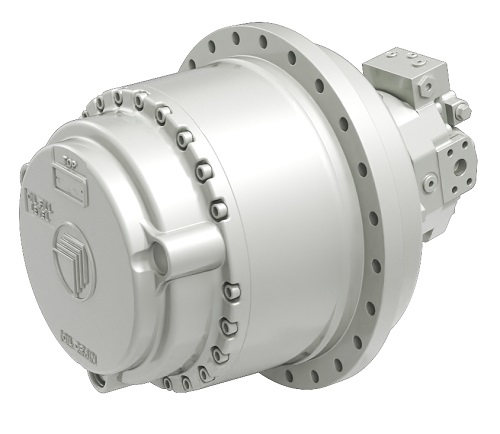

Travel drives = 700C Series
گیربکس بونفیلیولی مدل Travel drive سری 700c
Bonfiglioli 700C series units are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine.
All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems
گیربکس بونفیلیولی مدل Travel drive سری 700c
.
کاربری گیربکس بونفیلیولی مدل Travel drive سری 700c :
این سری از گیربکس بونفیلیولی همراه با سیستم هیدرولیک در ماشین های زیر کاربری دارند :
CRAWLER CRANES | CRUSHERS & SCREENERS | DRILLING MACHINES | EXCAVATORS | COLD MILLING MACHINES | PAVERS |
SOIL COMPACTORS | TANDEM VIBRATORY ROLLERS | BUCKET WHEEL EXCAVATORS | ROADHEARDER |
SURFACE MINERS | FELLER BUNCHERS | HARVESTERS | MULCHER MACHINES
مشخصات گیربکس بونفیلیولی مدل Travel drive سری 700c :
Key features ( ویژگی های کلی ) : Rotating housing | Rugged design | High torque capacity | High load capacity | Mechanical lifetime seals | Compact design
Input speed ( سرعت وروری ) : up to 4,000 rpm
Brake options ( ویژگی ترمز ) : Hydraulically released parking brake on request
Applicable motors : Cartridge axial piston hydraulic motors | Flanged axial piston hydraulic motors | Hydraulic orbit motors
Torque ( گشتاور ) (Nm) :
700 C1 H = ♦ 1.000 (Nm)
701 C1 = ♦ ♦ 2.200 (Nm)
703 C2 H = ♦ ♦ ♦ 4.000 (Nm)
705 C2 H = ♦ ♦ ♦ ♦ 10.000 (Nm)
706 C3 B = ♦ ♦ ♦ ♦ ♦ 18.000 (Nm)
707 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ 26.000 (Nm)
709 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ ♦ 30.000 (Nm)
710 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 36.000 (Nm)
711 C3 B =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 45.000 (Nm)
713 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 60.000 (Nm)
715 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 85.000 (Nm)
716 C3 B = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 100.000 (Nm)
717 C3 H = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 130.000 (Nm)
718 C3 H = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 180.000 (Nm)
720 C3 H =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 220.000 (Nm)
722 C3 H = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 330.000 (Nm)
724 C4 H =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 450.000 (Nm)
726 C4 H = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 625.000 (Nm)

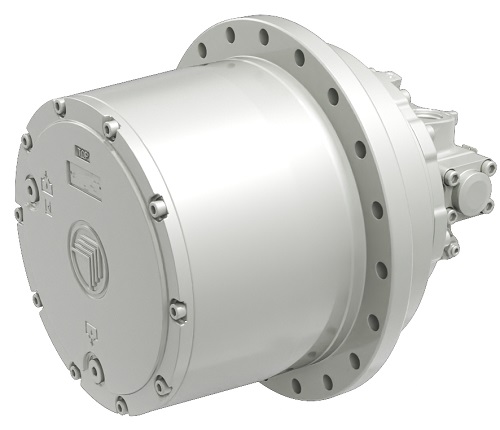

Track drives = 700CK Series
گیربکس بونفیلیولی مدل Travel drive سری 700CK
Extremely compact, lightweight, efficient and smooth to operate, 700CK Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Kayaba.
گیربکس بونفیلیولی مدل Travel drive سری 700CK
.
کاربری گیربکس بونفیلیولی مدل Travel drive سری 700CK :
این سری از گیربکس بونفیلیولی همراه با سیستم هیدرولیک در ماشین های زیر کاربری دارند :
COMPACT TRACK LOADERS | CRAWLER CRANES | EXCAVATORS | MINI-EXCAVATORS
مشخصات گیربکس بونفیلیولی مدل Travel drive سری 700CK :
Key features ( ویژگی های کلی ) : Rotating output flange with large PCD suitable for sprocket | Rugged design | High torque capacity |
High load capacity | Mechanical lifetime seals | Compact design
Input speed ( سرعت وروری ) : up to 3.500 rpm
Brake options ( ویژگی ترمز ) : Hydraulically released failsafe parking brake automatically operated by main pressure
Motor options : Pressure relief valves, shockless type | Anticavitation valve
Torque ( گشتاور ) (Nm) :
700 C2 K = ♦ 1.200 (Nm)
701 2C2 K = ♦ ♦ 1.900 (Nm)
701 C2 K = ♦ ♦ ♦ 2.500 (Nm)
702 C2 K = ♦ ♦ ♦ ♦ 3.500 (Nm)
704 C2 K = ♦ ♦ ♦ ♦ ♦ 5.000 (Nm)
705 C2 K = ♦ ♦ ♦ ♦ ♦ ♦ 9.000 (Nm)
706 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ 18.000 (Nm)
707 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 26.000 (Nm)
709 C3 K =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 30.000 (Nm)
710 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 36.000 (Nm)
710 C2 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 40.000 (Nm)
713 C2 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 45.000 (Nm)
713 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 60.000 (Nm)
715 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 85.000 (Nm)
716 C3 K =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 100.000 (Nm)
718 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 180.000 (Nm)
724 C3 K =♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 450.000 (Nm)
720 C3 K = ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ 220.000 (Nm)
Track drives = 700CP Series
Extremely compact, lightweight, efficient and smooth to operate, 700CP Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Poclain hydraulics.
Track drives = 700CT Series
Extremely compact, lightweight, efficient and smooth to operate, 700CT Series track drives are powered by integrated axial piston hydraulic motors.
Cutter drives = 700C Series
Dual-stage planetary drive units with integrated pulley support designed for cold planers and milling machines with engine power from 200 to 550 kW and rotor width from 1.0 to 2.5 m.
The offset input option ensures higher machine productivity due to increased cutting depth. The unique integrated cooling system allows greater performance, easier system maintenance and optimal level of reliability.
Slew drives = 700T Series
The Bonfiglioli 700T series provides the safest, most effective solution for cranes, excavators and forestry machines.
Highly appreciated by all major manufacturers, the 700T Series has long been established in the crane, excavator and special equipment industries.
Slew drives = 700TK Series
The 700TK Series is the compact and powerful slew drive package for 1.5- to 150-ton excavators.
The units are powered by integrated axial piston hydraulic motors, developed in cooperation with Kayaba and can be fitted in very small spaces.
Winch drives = 700C Series
The Bonfiglioli 700C series is highly suitable with any crawler. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine.
All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems.
راهنمای انتخاب و خرید گیربکس بونفیلیولی Bonfiglioli

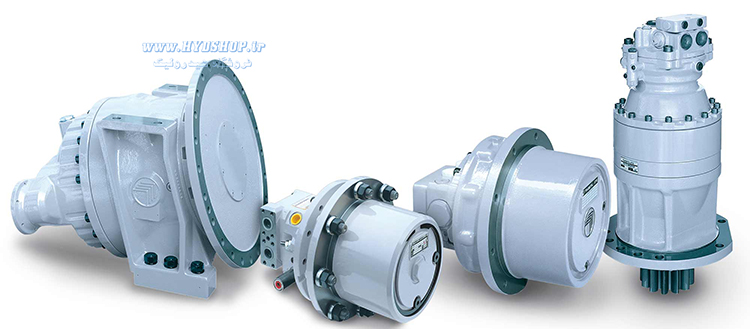

خرید گیربکس Bonfiglioli بونفیلیولی سری 700C
شما طراح گرامی میتوانید با کارشناسان ما در فروشگاه هیدشاپ HydShop تماس بگیرید و پس از دریافت مشاوره فنی اقدام به سفارش و خرید گیربکس خورشیدی بونفیلیولی نمایید.
راهنمای خرید گیربکس خورشیدی بونفیلیولی Bonfiglioli سری 700C
برای انتخاب گیربکس به 4 سوال اساسی زیر پاسخ دهید و با کمک کارشناسان بهترین گزینه را انتخاب نمایید :
اول) بیشینه ( ماکزیمم ) گشتاور ( Torque) در خروجی گیربکس را مشخص کنید
دوم) دور خروجی ( RPM) در شافت گیربکس را تعیین نمایید . یعنی اینکه میخواهید شافت چند دور در دقیقه بچرخد.
سوم) تعیین نمایید که ورودی گیربکس باید به الکتروموتور وصل باشد یا الکتروموتور .
چهارم) نحوه نصب گیربکس بونفیلیولی را به سیستم مکانیکی مشخص نمایید
.
خرید گیربکس Bonfiglioli بونفیلیولی سری 700C
